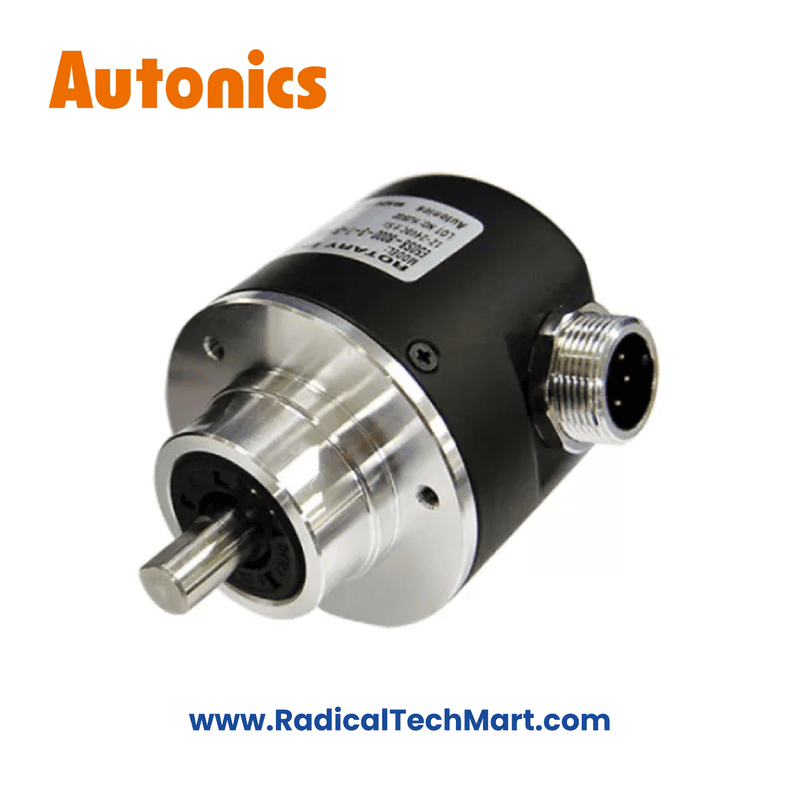

E50S8-1000-3-T-24-CS Autonics Encoder
Non-returnable
₹9,839.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | E50S8-1000-3-T-24-CS |
| Shaft outer diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 800gf.cm(max. 0.0784N.m) |
| Resolution | 1000P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC ±5%(ripple P-P: max. 5%) |
| Connection type | Radial connector type |
| Protection structure | IP65 |
| Approval | CE |
| Environment Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø8mm coupling, Bracket |
| Weight | Approx. 268g(Approx. 180g) |
